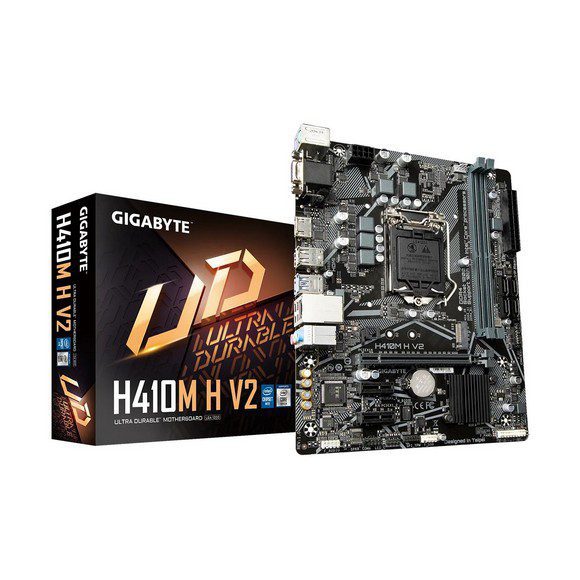

Name: Gigabyte H410M H V2 - Games and Geeks
Brand: Gigabyte

CPU	1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
	2. L3 cache varies with CPU
	(Please refer “CPU Support List” for more information.)
Chipset	1. Intel® H470 Express Chipset
Memory	1. Intel® Core™ i9/i7 processors:
	Support for DDR4 2933/2666/2400/2133 MHz memory modules
	2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
	Support for DDR4 2666/2400/2133 MHz memory modules
	3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	4. Dual channel memory architecture
	5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	7. Support for Extreme Memory Profile (XMP) memory modules
	(Please refer “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
	2. 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.3.
	Maximum shared memory of 512 MB
Audio	1. Realtek® Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN	1. Intel® GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots	1. 1 x PCI Express x16 slot, running at x16
	2. 2 x PCI Express x1 slots
	(The PCI Express slots conform to PCI Express 3.0 standard.)
	Supports up to ASPM L1.2 power management protocols.
Storage Interface	1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
	2. 4 x SATA 6Gb/s connectors
	3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
	4. Intel® Optane™ Memory Ready
	M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB	Chipset:
	1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 1 x system fan header
	5. 1 x RGB LED strip header
	6. 4 x SATA 6Gb/s connectors
	7. 1 x front panel header
	8. 1 x front panel audio header
	9. 1 x USB 3.2 Gen 1 header
	10. 1 x USB 2.0/1.1 header
	11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	12. 1 x serial port header
	13. 1 x Clear CMOS jumper
Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 1 x D-Sub port
	3. 1 x HDMI port
	4. 2 x USB 3.2 Gen 1 ports
	5. 4 x USB 2.0/1.1 ports
	6. 1 x RJ-45 port
	7. 3 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Overheating warning
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	Ambient LED
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	Smart Backup
	System Information Viewer
	2. Support for Q-Flash
	3. Support for Xpress Install
Bundled Software	1. Norton® Internet Security (OEM version)
Bundled Software	2. cFosSpeed
Operating System	1. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor; 22.6cm x 18.5cm
